RXF87DV71S4詳細信息
RXF87DV71S4
訂購熱線：13360667204
關鍵詞：5.5KW單相電機減速機_RXF87DV71S4_RXF87DRN71S4
RXF87DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RXF87DV71S4 | 246.54 | 0.37KW | 3.7rpm | 960N.m | 73.5kg | 20000N | 1.6 |
| RXF87DV71S4 | 216.54 | 0.37KW | 4.2rpm | 840N.m | 73.5kg | 20000N | 1.85 |
| RXF87DV71S4 | 205.71 | 0.37KW | 4.4rpm | 800N.m | 73.5kg | 20000N | 1.95 |
| RXF87DV71S4 | 181.77 | 0.37KW | 5rpm | 705N.m | 73.5kg | 20000N | 2.2 |
| RXF87DV71S4 | 155.34 | 0.37KW | 5.8rpm | 605N.m | 73.5kg | 20000N | 2.6 |
| RXF87DV71S4 | 142.41 | 0.37KW | 6.4rpm | 555N.m | 73.5kg | 20000N | 2.8 |
RXF87DRN71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RXF87DRN71S4 | 246.54 | 0.55KW | 5.6rpm | 930N.m | 78kg | 20000N | 1.65 |
| RXF87DRN71S4 | 216.54 | 0.55KW | 6.4rpm | 820N.m | 78kg | 20000N | 1.9 |
| RXF87DRN71S4 | 205.71 | 0.55KW | 6.7rpm | 780N.m | 78kg | 20000N | 2 |
| RXF87DRN71S4 | 181.77 | 0.55KW | 7.6rpm | 690N.m | 78kg | 20000N | 2.2 |
| RXF87DRN71S4 | 155.34 | 0.55KW | 8.9rpm | 590N.m | 78kg | 20000N | 2.6 |
| RXF87DRN71S4 | 142.41 | 0.55KW | 9.7rpm | 540N.m | 78kg | 20000N | 2.9 |
| RXF87DRN71S4 | 124.97 | 0.55KW | 11rpm | 475N.m | 78kg | 20000N | 3.3 |
| RXF87DRN71S4 | 118.43 | 0.55KW | 12rpm | 450N.m | 78kg | 20000N | 3.4 |
| RXF87DRN71S4 | 103.65 | 0.55KW | 13rpm | 390N.m | 78kg | 20000N | 3.9 |
RXF87DV71S4減速機電動機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

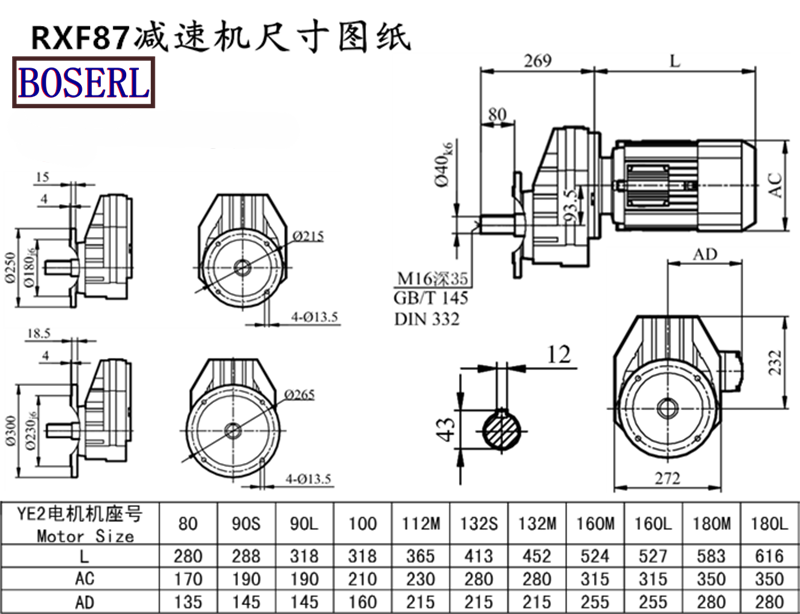

RXF87DV71S4減速機電動機安裝尺寸圖紙
RXF87DV71S4減速機電動機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
減速機電機一體化應用案例展示：
關鍵詞:減速機電機一體化一套_RXF系列減速機與電機_電動機減速器一體機_減速機電機一體機生產廠家_減速機電機一體機廠家_RXF系列減速機生產廠家_減速機電動機一體機
RXF系列減速機型號：RXF57減速機,RXF67減速機,RXF77減速機,RXF87減速機,RXF97減速機,RXF107齒輪減速機
RXF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 5.5KW單相電機減速機 RXF87DV71S4 RXF87DRN71S4
- 上一條RXF87DRE71M4
- 下一條RXF87DRS71S4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| RXF87DV71S4減速機電動機樣本 |
|
| RXF87DV71S4減速機電動機三維圖紙 |
|
