S67DV80M4詳細信息
S67DV80M4
訂購熱線：13360667204
關鍵詞：輸出轉數98轉減速機電機_S67DV80M4_S67DRN80M4_98轉一分鐘減速電機_每分鐘轉98轉齒輪減速箱馬達_98轉/分鐘減速器_98轉電機減速機
S67DV80M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| S67DV80M4 | 190.11 | 0.75KW | 7.60rpm | 600N.m | 42kg | 7820N | 0.85 |
| S67DV80M4 | 180.60 | 0.75KW | 8.00rpm | 575N.m | 42kg | 8120N | 0.90 |
| S67DV80M4 | 158.45 | 0.75KW | 9.10rpm | 510N.m | 42kg | 8740N | 1.00 |
| S67DV80M4 | 134.40 | 0.75KW | 11.0rpm | 440N.m | 42kg | 9300N | 1.15 |
| S67DV80M4 | 121.33 | 0.75KW | 12.0rpm | 400N.m | 42kg | 9560N | 1.30 |
| S67DV80M4 | 106.75 | 0.75KW | 13.0rpm | 360N.m | 42kg | 9820N | 1.45 |
| S67DV80M4 | 100.80 | 0.75KW | 14.0rpm | 340N.m | 42kg | 9920N | 1.50 |
| S67DV80M4 | 85.83 | 0.75KW | 17.0rpm | 295N.m | 42kg | 10100N | 1.75 |
| S67DV80M4 | 75.06 | 0.75KW | 19.0rpm | 300N.m | 42kg | 10100N | 1.60 |
| S67DV80M4 | 65.63 | 0.75KW | 22.0rpm | 260N.m | 42kg | 10300N | 1.80 |
| S67DV80M4 | 62.35 | 0.75KW | 23.0rpm | 250N.m | 42kg | 10300N | 1.90 |
| S67DV80M4 | 54.70 | 0.75KW | 26.0rpm | 220N.m | 42kg | 10200N | 2.20 |
| S67DV80M4 | 46.40 | 0.75KW | 31.0rpm | 191N.m | 42kg | 9740N | 2.50 |
S67DRN80M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| S67DRN80M4 | 190.11 | 0.75KW | 7.60rpm | 600N.m | 42kg | 7820N | 0.85 |
| S67DRN80M4 | 180.60 | 0.75KW | 8.00rpm | 575N.m | 42kg | 8120N | 0.90 |
| S67DRN80M4 | 158.45 | 0.75KW | 9.10rpm | 510N.m | 42kg | 8740N | 1.00 |
| S67DRN80M4 | 134.40 | 0.75KW | 11.0rpm | 440N.m | 42kg | 9300N | 1.15 |
| S67DRN80M4 | 121.33 | 0.75KW | 12.0rpm | 400N.m | 42kg | 9560N | 1.30 |
| S67DRN80M4 | 106.75 | 0.75KW | 13.0rpm | 360N.m | 42kg | 9820N | 1.45 |
| S67DRN80M4 | 100.80 | 0.75KW | 14.0rpm | 340N.m | 42kg | 9920N | 1.50 |
| S67DRN80M4 | 85.83 | 0.75KW | 17.0rpm | 295N.m | 42kg | 10100N | 1.75 |
| S67DRN80M4 | 75.06 | 0.75KW | 19.0rpm | 300N.m | 42kg | 10100N | 1.60 |
| S67DRN80M4 | 65.63 | 0.75KW | 22.0rpm | 260N.m | 42kg | 10300N | 1.80 |
| S67DRN80M4 | 62.35 | 0.75KW | 23.0rpm | 250N.m | 42kg | 10300N | 1.90 |
| S67DRN80M4 | 54.70 | 0.75KW | 26.0rpm | 220N.m | 42kg | 10200N | 2.20 |
| S67DRN80M4 | 46.40 | 0.75KW | 31.0rpm | 191N.m | 42kg | 9740N | 2.50 |

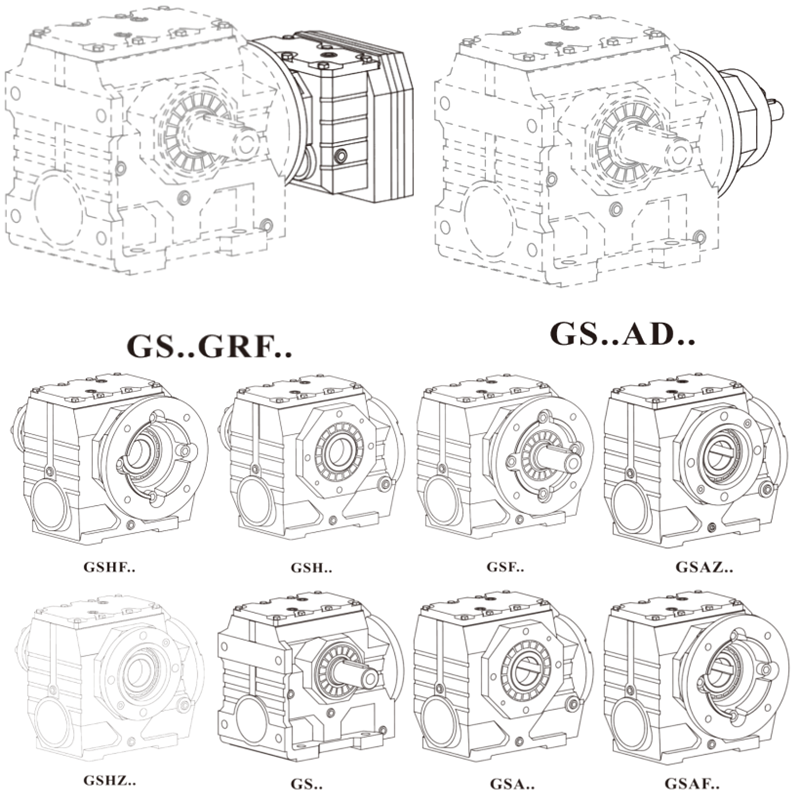

S67DV80M4電機減速機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
S67DV80M4電機減速機安裝尺寸圖紙
S67DV80M4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A約
S系列減速機應用案例展示：
關鍵詞:S系列減速機_GS蝸輪蝸桿減速機電機一套_具有自鎖功能減速器與電機_有自鎖功能減速機_S蝸輪蝸桿減速機_S系列減速機生產廠家
S系列減速機型號：S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97減速機
S系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸出轉數98轉減速機電機 S67DV80M4 S67DRN80M4 98轉一分鐘減速電機 每分鐘轉98轉齒輪減速箱馬達 98轉/分鐘減速器 98轉電機減速機
- 上一條S67DRE80S4
- 下一條S67DVE80M4
